52 26 005 Removing and Installing / Replacing Rear Seat



52 26 005 Removing And Installing / Replacing Rear Seat

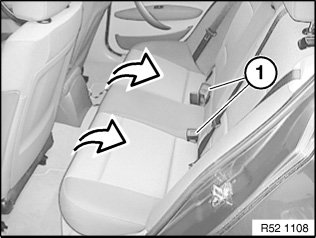

Unclip rear seat on left and right towards top.
Lift out rear seat.

Installation note:
Feed seat belt buckles (1) into recesses in rear seat.
