52 13 041 Removing and Installing / Replacing Inner Cover on Left or Right Front Seat Backrest (Normal/Manual)



52 13 041 Removing And Installing / Replacing Inner Cover On Left Or Right Front Seat Backrest (Normal/Manual)







Necessary preliminary tasks:
- Remove front seat

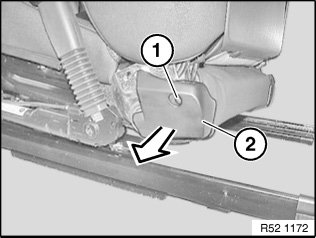

Release screw (1).
Remove trim (2) from inside of seat.
