54 10 300 Removing and Refitting Water Gutter

54 10 300 Removing And Refitting Water Gutter







Necessary preliminary work:
- Remove front section of panorama glass roof
- Move mechanism for front glass slide/tilt sunroof cover to vent position
- Floating headliner closed

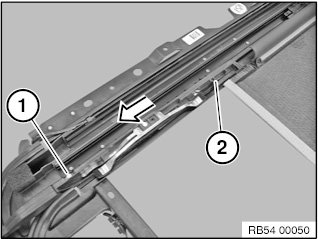

Lift out pin out of expanding rivet (1) and remove expanding rivet.
Pull detent element (2) for floating headliner towards rear and lift out.

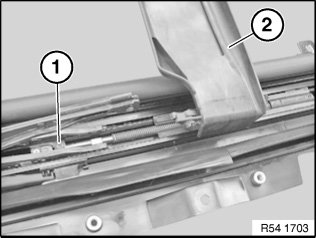

Lift out pin out of expanding rivet and remove expanding rivet.
Slide back water channel (2) and out of guide.
