54 10 300 Removing and Refitting Water Channel

54 10 300 Removing and refitting water channel







Necessary preliminary tasks:
- Remove front section of panorama glass roof
- Move mechanism for front glass slide/tilt sunroof cover to vent position
- Floating headlining closed

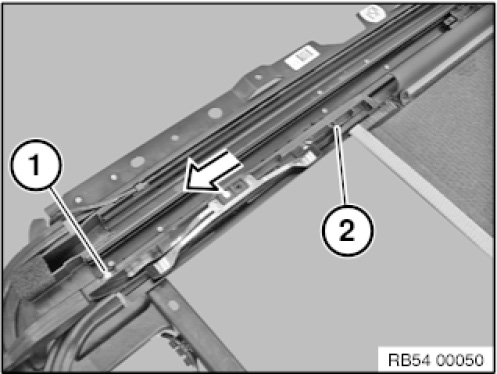

Drill out rivet (1).
Pull gate (2) for floating headlining towards rear and lift out.

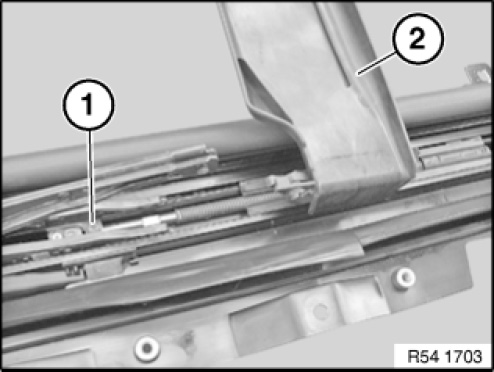

Lift out pin out of expanding rivet and remove expanding rivet.
Slide back water channel (2) and out of guide.
