54 13 065 Removing and Installing/Replacing Floating Headlining For Glass Slide/Tilt Sunroof At Rear

54 13 065 Removing And Installing/Replacing Floating Headlining For Glass Slide/Tilt Sunroof At Rear







Necessary preliminary work:
- Remove front section of panorama glass roof







NOTE: The right side is removed in the same way as the left side illustrated here.

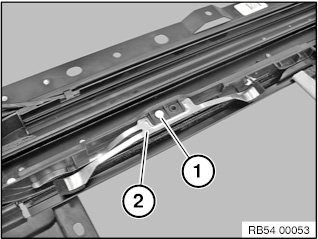

Lift out pin and remove expanding rivet (1). Remove clip (2).

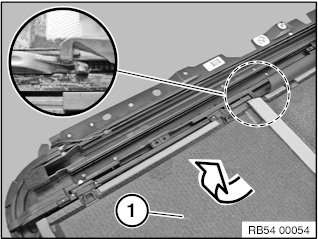

Remove sliding sunshade (1) towards rear.

Installation note:
Insert mechanism of rear sliding sunshade on left and right into mechanism of front sliding sunshade.







Replacement only:
Remove floating headliner mechanism.
