41 33 039 Removing and Installing Front Panel

41 33 039 Removing And Installing Front Panel







Necessary preliminary work:
- Remove front bumper trim.

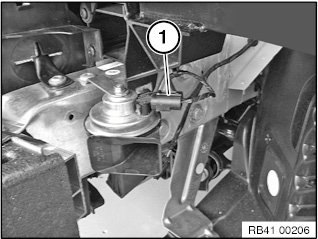

Unlock plug-in connector (1) for horn and disconnect.
Shown on left side, right side identical.

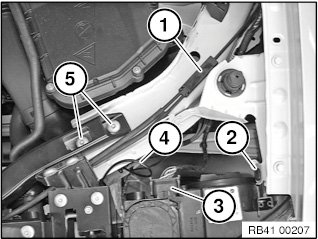

Open clutch (1) and detach Bowden cable for hood/bonnet release.
Release screw (2).
Tightening torque 63 12 9AZ.

Unlock plug connection (3) for headlight and disconnect.
Unlock plug connection for wiring harness (4) and disconnect.
Release screws (5).
Tightening torque 17 10 2AZ.

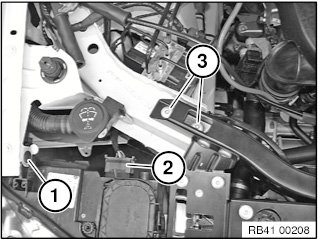

Release screw (1).
Tightening torque 63 12 9AZ.
Unlock plug connection (2) for headlight and disconnect.
Release screws (3).
Tightening torque 17 10 2AZ.

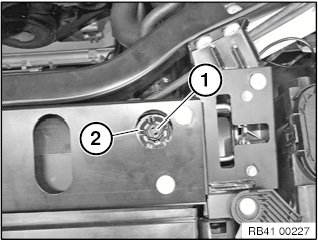

Pull out retainer (2) upwards.
Press the 5 latch mechanisms inward and remove bearing pin (2) upward. Shown on left side, right side identical.
In case of damage during disassembly, replace bearing pin (plug).

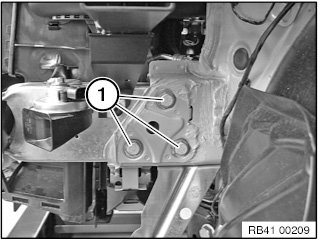

Release screws (1) on engine support on both sides and remove front panel.
Tightening torque 51 11 3AZ.







Installation note:

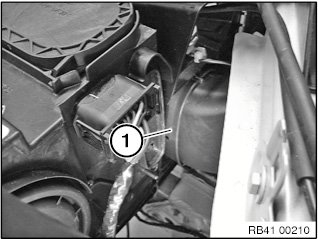

When mounting the front panel, ensure that the intake air channel (1) is correctly positioned.







Installation note:

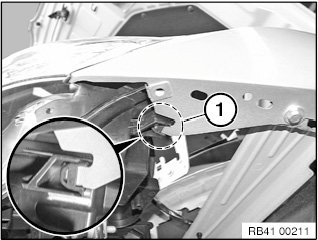

In area (1), ensure that the side wall and headlight are correctly positioned.
