51 43 259 Removing and Installing/Replacing Trim For Rear Roof Pillar (D-Pillar), Left or Right

51 43 259 Removing And Installing/Replacing Trim For Rear Roof Pillar (D-Pillar), Left Or Right







Necessary preliminary work:
- Remove trim for roof pillar at rear
- Remove luggage compartment-wheel arch trim cover
- Remove capping

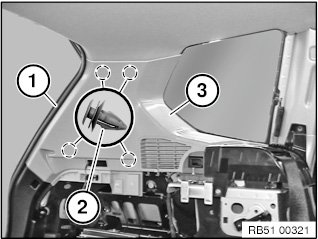

Release screw (1).







Release mucket (1).
Detach trim panel (3) from clips (2).
Release plug connection of switch for trailer tow hitch/luggage compartment lighting (right) and disconnect.

IMPORTANT: Risk of damage.

Carefully remove trim (3) to avoid damaging the headliner.

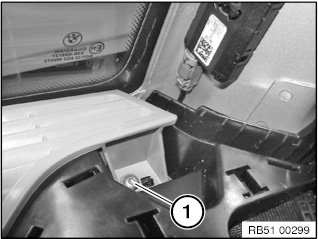

Installation note:
Replace faulty clips (1).
Guide (2) must not be damaged.

Replacement:
Reinstall switch for trailer tow hitch.
Reinstall luggage compartment lighting.
