51 43 251 Removing and Installing or Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar)

51 43 251 Removing And Installing Or Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar)







WARNING: Follow safety instructions for working on vehicles with airbag systems.

IMPORTANT: Do not use sharp-edged tools to remove trim (risk of damage).

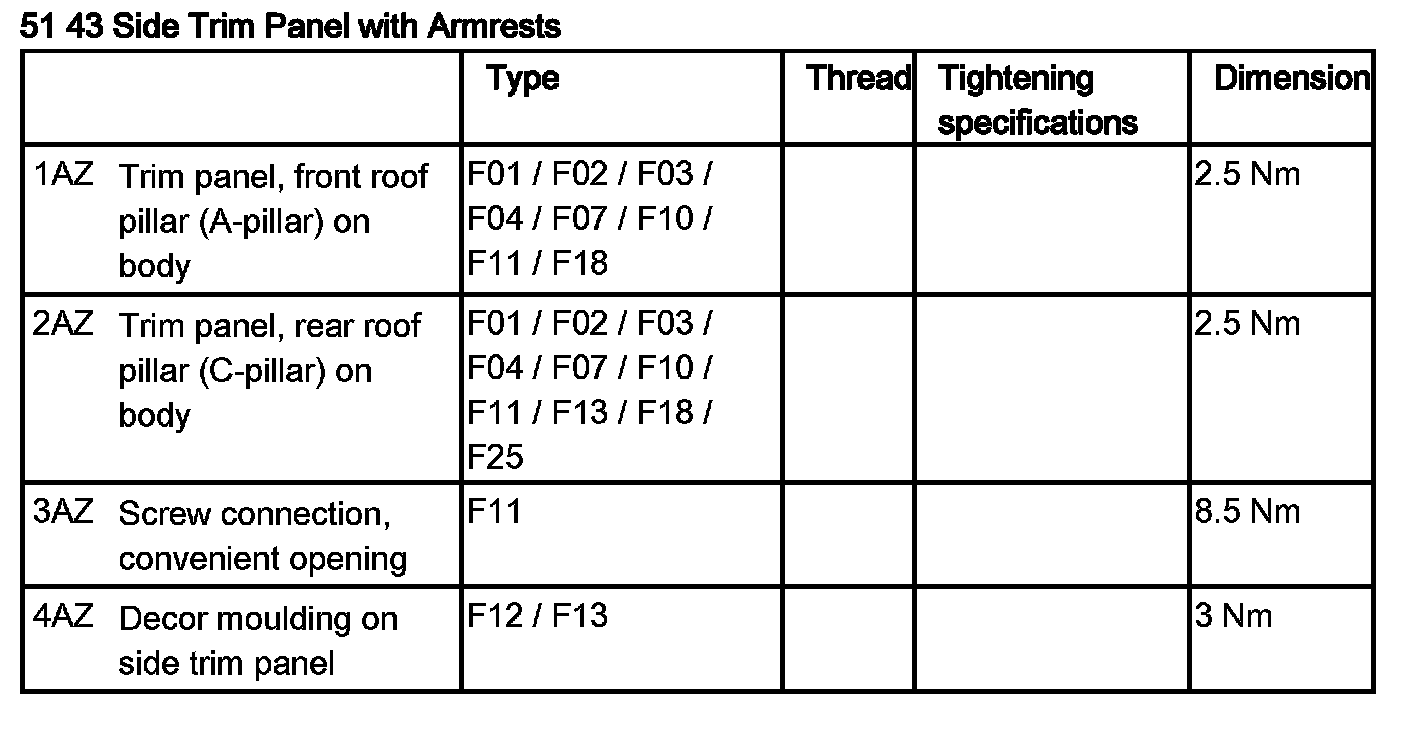

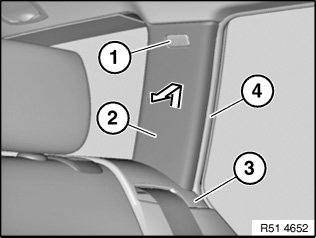

Pry out cover (1) and release screw it concealed; tightening torque 51 43 2AZ.
Feed trim panel (2) upwards/inwards out of mounting (3) and remove.

Installation note:
Make sure trim panel (2) is correctly seated in mounting (3) and edge protection (4).
