51 43 150 Removing and Installing or Replacing Trim Panel For Left or Right Door Post (Bottom)

51 43 150 Removing And Installing Or Replacing Trim Panel For Left Or Right Door Post (Bottom)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary work:
- Remove front door sill cover strip
- Remove rear door sill cover strip

NOTE: Remove edge guard in area of trim panel (2).

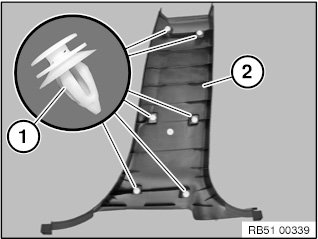

Detach trim panel (2) from clips (1).

Installation note:

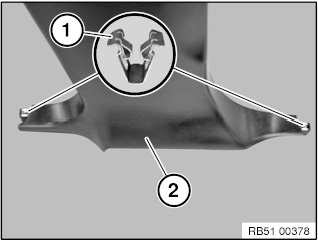

Clips (1) on trim panel (2) must not be damaged or missing.
