51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip

51 47 000 Removing And Installing/Replacing Front (inside) Left Or Right Entrance Cover Strip

Special tools required:







Operations on right side analogous to side shown.
Use graphics in a mirror-inverted way.







IMPORTANT: Do not raise entrance cover strip (1) over entire length simultaneously.

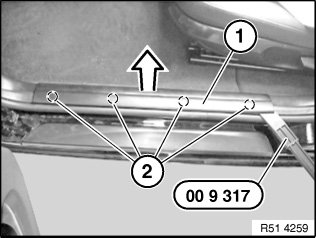

Unclip entrance cover strip (1) from clip (2), starting from the rear and moving forward, using special tool 00 9 317.

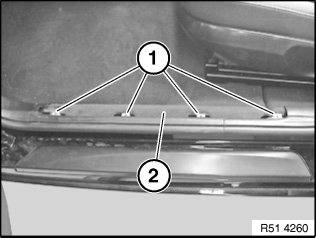

If necessary lift clip (1) from floor plate (2) and clip on entrance cover strip.







Installation note:

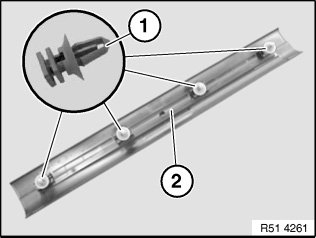

Replace defective clips (1) on door sill cover strip (2).
