Drink Holders: Service and Repair

51 16 202 Removing And Installing/Replacing Front Cup Holder







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary work:
- Remove centre console cover







Remove front and rear insert mats from can holder (1).

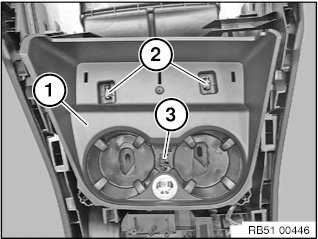

Unclip can holder (1) at retaining clips (2) and retaining hooks (3).

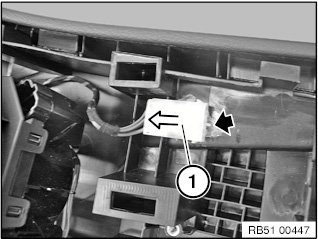

Release plug connection (1) and detach can holder.

Replacement
Modify 12 V charging socket
