51 45 460 Removing and Installing/Replacing Upper Instrument Panel Storage Compartment

51 45 460 Removing And Installing/Replacing Upper Instrument Panel Storage Compartment

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:
- Remove decorative strip on dashboard in middle

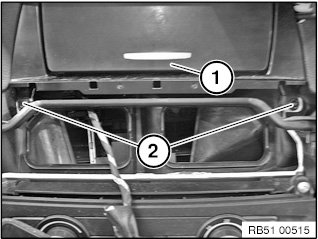

Release screws (2) on storage compartment (1).
Tightening torque 51 16 16AZ.
Remove storage compartment (1).
