51 45 385 Removing and Installing/Replacing Middle Decorative Strip on Instrument Panel

51 45 385 Removing And Installing/Replacing Middle Decorative Strip On Instrument Panel







IMPORTANT: Risk of damage.

A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.

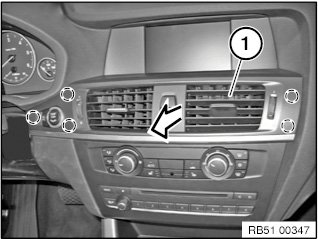

Unclip trim strip (1) at marked points.
If necessary, replace defective clips.

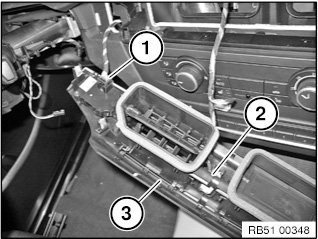

Unlock plug connections (1) and (2) and disconnect.
Remove decorative strip (3).
