61 31 334 Removing and Installing/Replacing Grip Trim For Gear Selector Switch

61 31 334 Removing and installing or replacing grip cover for gear selector switch

Special tools required:







Carefully unclip cover (1) using special tool 00 9 322 on points (2) from gear selector switch (3) and remove in the direction of arrow.







Installation note:

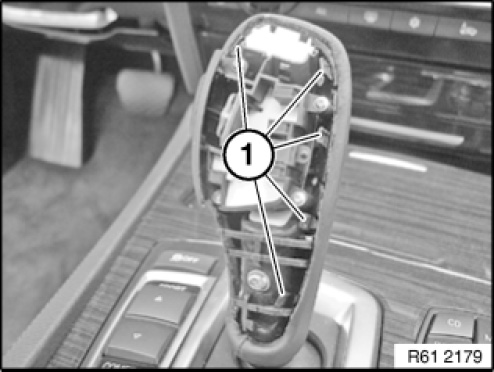

Latch mechanism (1) must not be damaged or missing.







Installation note:
Latch mechanism (1) and guide (2) must not be damaged or missing.
