51 16 ... Removing And Installing/Replacing Rear Storage Compartment (Top)







Special tools required:
- 00 9 325







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary work:
- Remove centre armrest storage compartment
- Remove rear (lower) storage compartment







Release lower screws (1) from top rear of storage compartment (2).







Fold up centre armrest if necessary (1).
Release upper screw (2) from upper rear shelf.

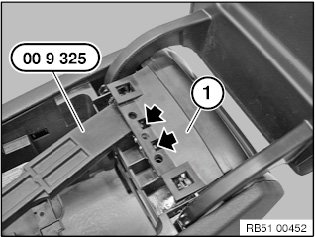

Using special tool 00 9 325 lever out storage compartment at top rear (1) and pull back to detach.
