51 71 ... Partially Remove and Install Trim of Front Left or Right Wheel Arch (Front Part)

51 71 ... Partially Remove And Install Trim Of Front Left Or Right Wheel Arch (Front Part)







NOTE: Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.







NOTE: Wheel removed in illustration for clarification purposes.

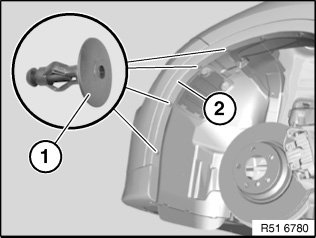

Remove highlighted plastic rivets (1) from wheel arch trim (2).

Installation note:
Replace plastic rivets (1).

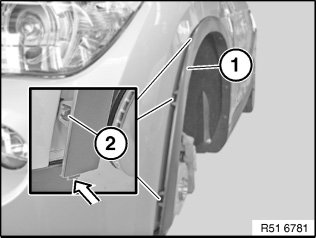

Unclip wheel arch strip (1) in front area (2).

Installation note:
Observe lower guide tab (arrow).
