Trunk / Liftgate Hinge: Service and Repair

41 62 515 Removing/installing/replacing left hinge for tailgate (tailgate removed)







Read contents of Body, General.
For stripping and rigging operations, refer to texts on KSD CD (job number 41 62 515).

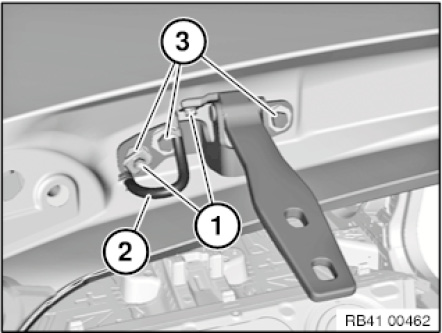

Loosen screw connections (1) and remove ground cable (2).
Release screws (3) and remove hinge.

Installation note:
Tightening torque 41 62 2AZ/ 41 62 3AZ.
Adjust hinge together with tailgate.
