41 62 014 Adjusting Rear Lid

41 62 014 Adjusting Rear Lid







IMPORTANT:
- Do not damage adjoining body components.
- Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.







Read contents of Body, General.
Observe gap dimensions.
The rear lid must be provided with all add-on parts for correct adjustment.

Version with automatic rear lid activation:
Disable automatic rear lid actuation:
Separate connector at control unit for automatic rear lid actuation.

IMPORTANT: Risk of damage to spindle drive:
only move rear lid slowly by hand.







Necessary preliminary work:
- Remove trim for rear window frame







NOTE: When the rear lid is closed, the lock striker must not touch or scrape against the rear lid lock.

Adjusting rear lid laterally and in longitudinal direction:

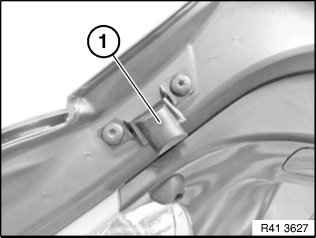

Slacken screws (1) on rear lid hinge to rear lid until such stage that rear lid can still be moved.
Adjust rear lid.
Tightening torque 41 62 1AZ.

Height adjustment of rear lid to roof:

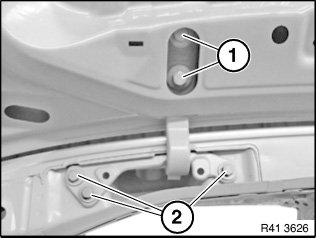

Slacken screws (2) and adjust rear lid.
Tightening torque 41 62 3AZ.







Check read lid wedge (1) on left and right for damage, replace if necessary.
If necessary, adjust rear lid stop in water channel.







After installation:
- Tighten all screws and nuts to specified torque.
- Touch up unpainted surfaces in the appropriate colour.
- If reversing camera optional equipment installed:
Calibrate reversing camera.
