(5123X02) 51 23 ... Adjusting/Replacing Bump Stops

51 23 ... Adjusting/Replacing Bump Stops







Necessary preliminary tasks:
Remove luggage compartment wheel arch trim.







Following parts must not be damaged:

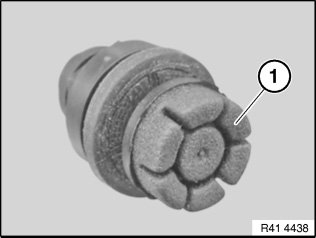

- (1) Bump stop
- (2) Lock nut (following illustration)

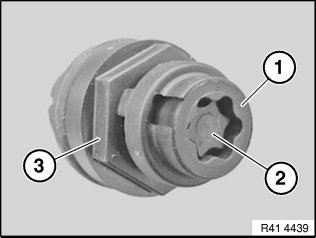

Rear view:
- Adjust bump stops
Remove cap (1).
Adjust bump stop to correct height by turning screw (2) to left or right.

- Remove bump stops
Release nut (3) and remove bump stops.
