51 23 110 Removing and Installing/Replacing Left Engine Compartment Lid Lock

51 23 110 Removing and installing/replacing left engine compartment lid lock







Necessary preliminary tasks:
- Remove top rear connection







Engine compartment lid catch with microswitch:
Detach plug connection (1) by twisting from catch carrier.
Unfasten plug connection (1) and disconnect.

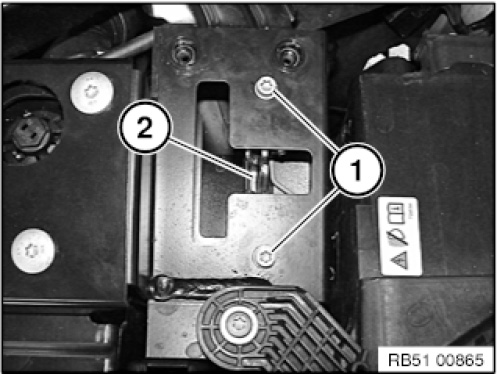

Release screws (1).
Tightening torque 51 23 2AZ.
Remove engine compartment lid lock (2) downwards.

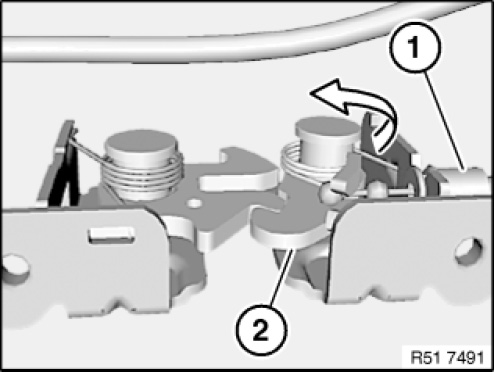

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).
Remove engine compartment lid catch.
