51 23 100 Removing and Installing/Replacing Right Engine Compartment Lid Lock

51 23 100 Removing and installing/replacing right engine compartment lid lock

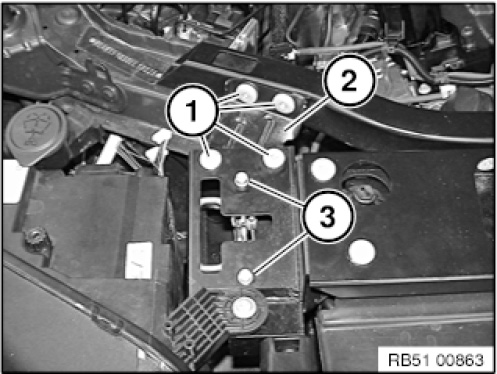

Release screws (1) and remove holder (2).

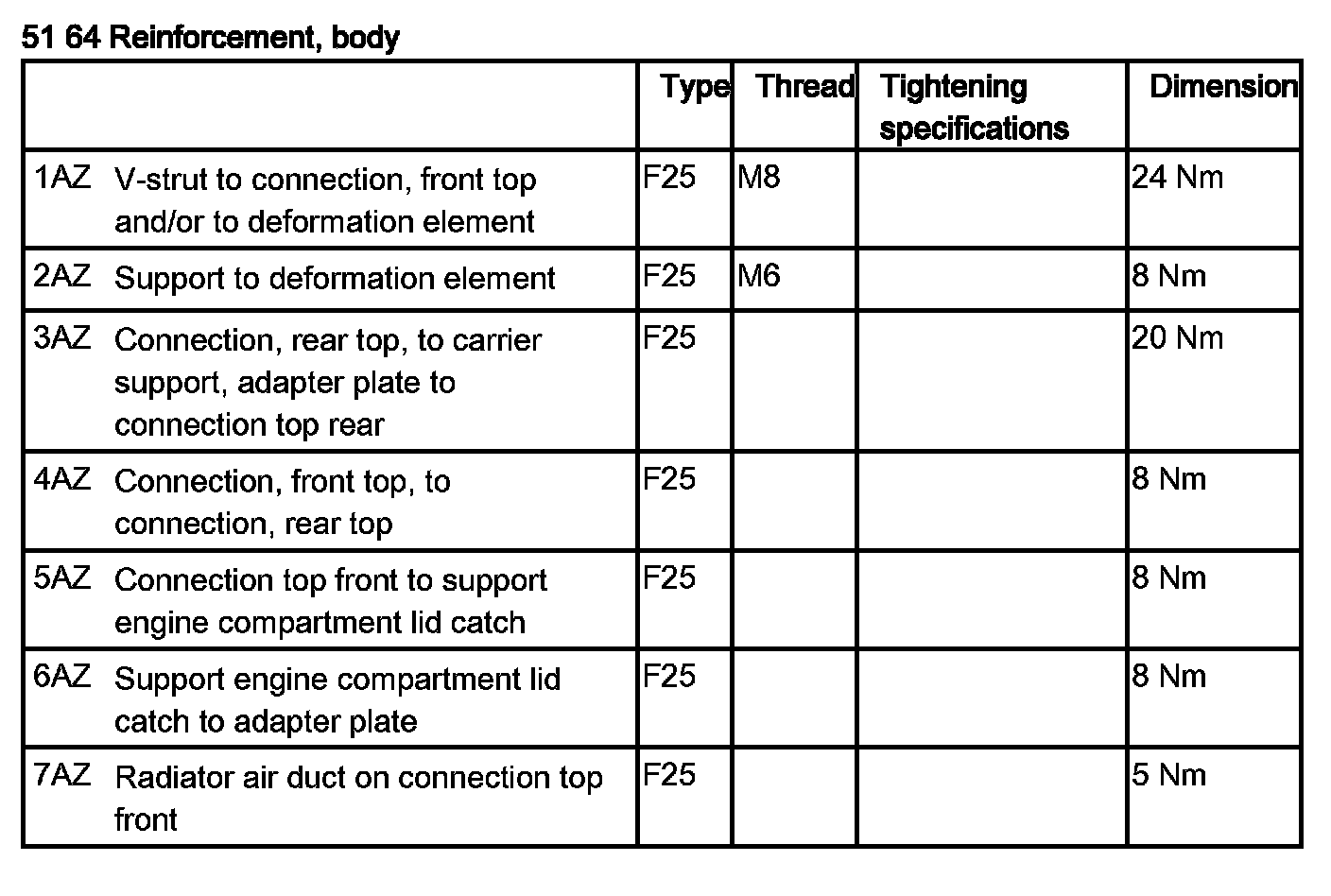

Tightening torque 51 64 3AZ.
Release screws (3).
Tightening torque 51 23 2AZ.

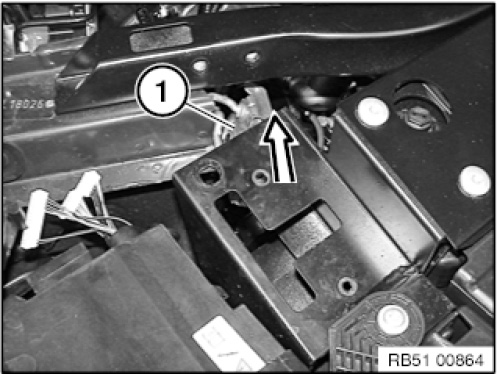

Remove engine compartment lid lock (1) in direction of arrow.

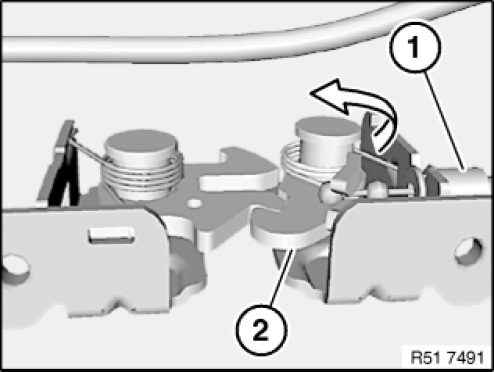

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).
Remove engine compartment lid lock (2).
