51 13 116 Removing and Installing Cowl Panel Cover

51 13 116 Removing And Installing/Replacing Cowl Panel Cover







Necessary preliminary work:
- Remove both windscreen wiper arms.

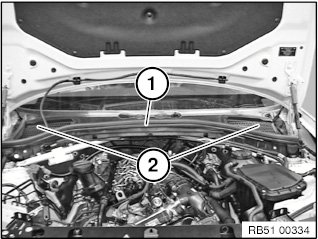

Remove seal (1) and cover (2).

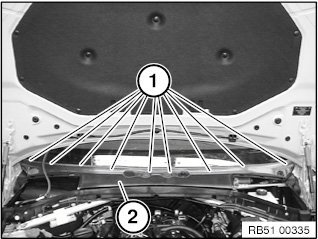

Detach cowl panel cover (2) from clips (1) and remove by pulling forward.







Installation note:

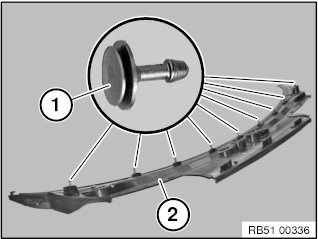

Clips (1) on cover (2) must not be damaged or missing.
Check cover (2) for correct seating.
