51 12 050 Removing and Installing/Replacing Support For Rear Bumper Panel

51 12 050 Removing And Installing/Replacing Support For Rear Bumper Panel







Necessary preliminary work:
- Remove bumper panel

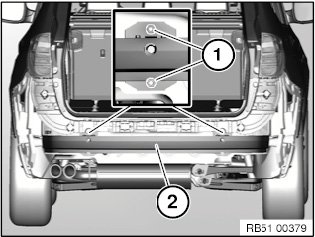

Release all nuts (1).
Tightening torque 51 12 1AZ.
Remove support (2).

Installation note:







Water ingress.
Bolts for nuts (1) must be sealed with sealant 1 towards tail panel.
Replace gasket between support (2) and body every time after dismantling.
