51 12 828 Removing and Installing/Replacing Guide For Rear Left or Right Bumper

51 12 828 Removing and installing/replacing guide for rear left or right bumper







Necessary preliminary tasks:
- Remove rear bumper

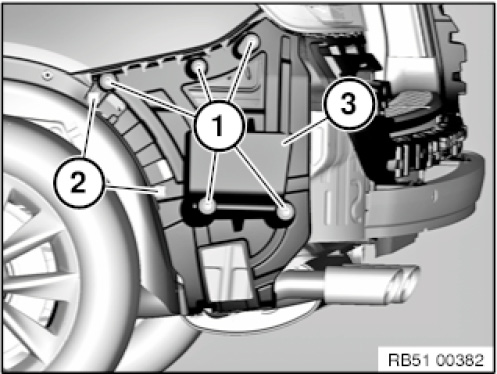

Unscrew nuts (1).
Tightening torque 51 12 3AZ
Unfasten screws (2).
Tightening torque 51 12 3AZ
Remove guide (3).







Installation note:

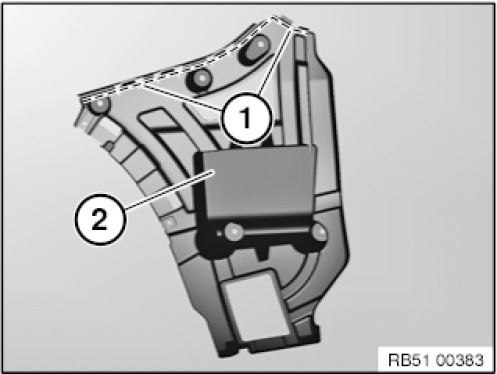

Latch mechanisms (1) of guide (2) must not be damaged or missing.
