51 12 ... Removing and Installing/Replacing Rear Bumper Panel Cover (X-Line)

51 12 ... Removing and installing/replacing rear bumper panel cover (X-Line)







Necessary preliminary tasks:
- Remove bottom cover

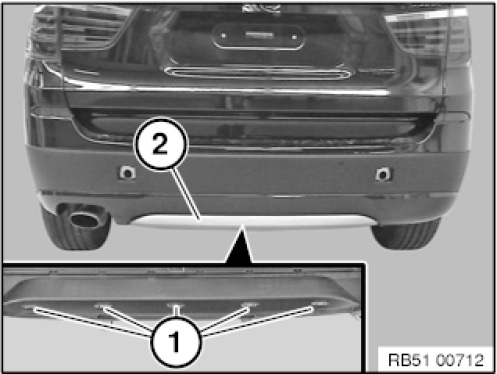

Release clamps (1) on inside of bumper panel and remove cover (2).







Installation note:

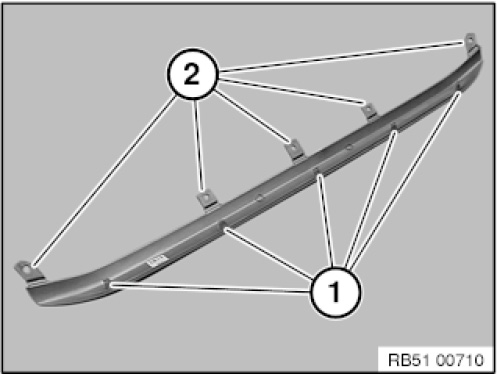

Retaining tabs (2) and retaining lugs (1) may not be damaged or missing.

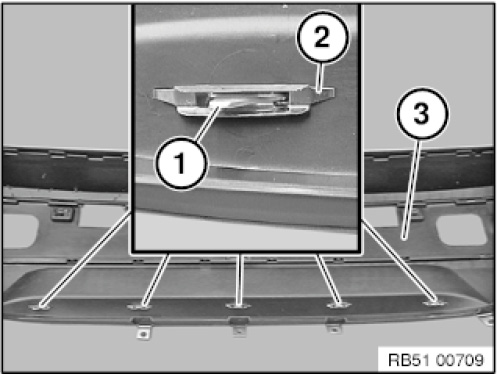

Secure retaining lugs (1) on inside of bumper panel (3) with clamps (2) and secure.
If necessary, replace retainers (2).
