51 11 770 Removing and Installing/Replacing Left or Right Deformation Element For Front Bumper

51 11 770 Removing And Installing/Replacing Left Or Right Deformation Element For Front Bumper







Necessary preliminary work:
- Remove carrier for bumper trim at front

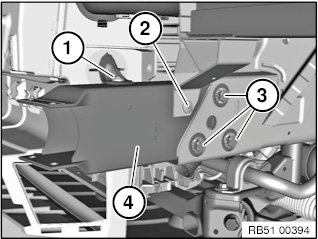

Release screw (1).
Tightening torque 51 64 1AZ
Unfasten screws (2).
Tightening torque 51 64 2AZ
Release screws (3).
Tightening torque 51 11 3AZ
Remove deformation element (4).







Installation note:
Replace screws (3).
Height adjustment, refer to Gap dimensions, body.
