51 11 050 Removing and Installing/Replacing Carrier For Front Bumper Trim

51 11 050 Removing And Installing/Replacing Support For Front Bumper Trim

Necessary preliminary work:
- Remove front bumper trim

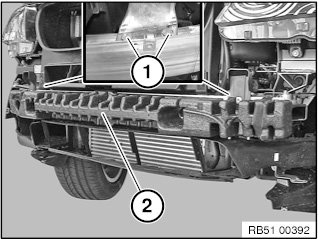

Release screws (1) on left/right.
Tightening torque 51 11 4AZ
Remove support with shock absorber (2) by pulling forward.

Installation note:

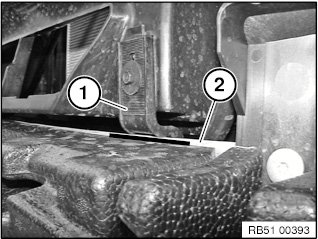

Adjust bracket (1) flush with support (2).

Replacement:
Reposition impact absorber.
