Front Bumper Bracket: Service and Repair

51 11 ... Removing and installing/replacing bracket for fog light on left or right







Necessary preliminary tasks:
- Remove front bumper trim







Release retaining clips (1).

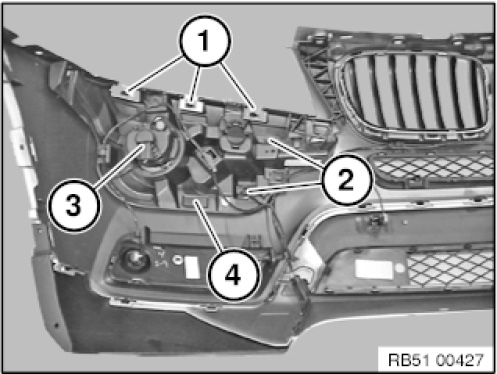

Disconnect plug connection (3) at fog light.
Release retaining fixture (2) and remove bracket (4).







Installation note:
Retaining clips (1) and guides (2) must not be damaged.

Replacement:
Reinstall fog lights.
