65 12 051 Removing and Installing/Renewing Central Bass Speaker -Driver's Side- (Under Front Seat)

65 12 051 Removing And Installing/renewing Central Bass Speaker -driver's Side- (under Front Seat)







Necessary preliminary work:
- Remove front seat.

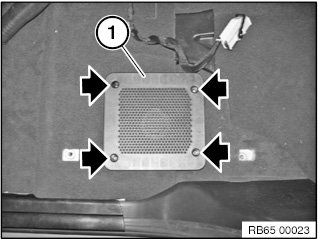

Release screws.
Remove cover (1).

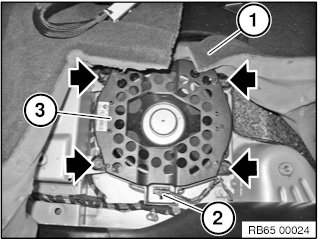

Fold up the carpet (1) as shown.
Release screws.
Tightening torque 65 13 2AZ.
Unscrew nuts (2).
Remove central base support (3).
