65 11 080 Removing and Installing/Replacing Radio Receiver

65 11 080 Removing And Installing/replacing Radio Receiver

Special tools required:







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.







Necessary preliminary work:
- Remove decorative strip on dashboard, centre

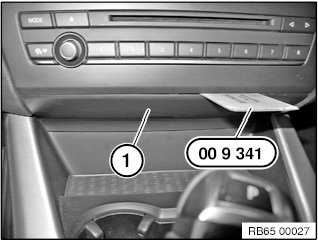

Insert special tool 00 9 341 as illustrated.
Lever trim cover (1) slightly forward and unclip.

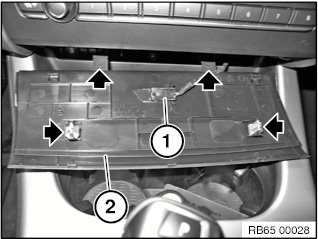

Unclip LED (1).
Remove cover (2).

Installation note:
Retaining lugs and clips must not be damaged.

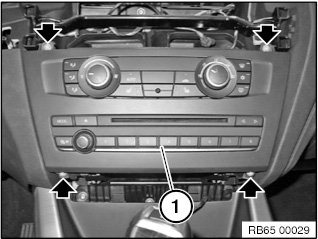

Release screws.
Pull radio receiver with operating unit cover (1) out toward the front.
Unlock associated plug connections and disconnect.
