61 31 321 Removing and Installing/Replacing Radio and A/C Control Panel

61 31 321 Removing And Installing Radio And A/C Control Panel

Special tools required:







IMPORTANT: Risk of damage.

A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.







Necessary preliminary work:
- Remove decorative strip on dashboard in middle

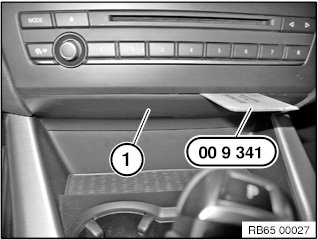

Insert special tool 00 9 341 as illustrated.
Lever trim cover (1) slightly forward and unclip.

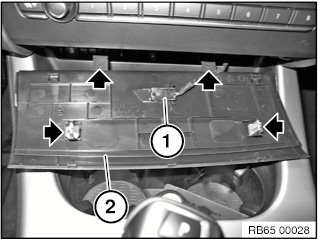

Unclip LED (1).
Remove cover (2).

Installation note:
Retaining lugs and clips must not be damaged.

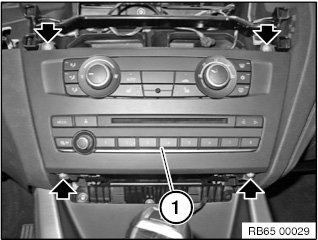

Release screws.
Remove control panel (1) towards front.
Unlock associated plug connections and disconnect.







Replacement:
Carry out vehicle programming/encoding.
