65 12 072 Removing and Installing (Replacing) Amplifier (Top HiFi System)

65 12 072 Removing And Installing (replacing) Amplifier (Top HiFi System)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary work:
- Disconnect negative battery cable
- Remove flap in luggage compartment panel on left

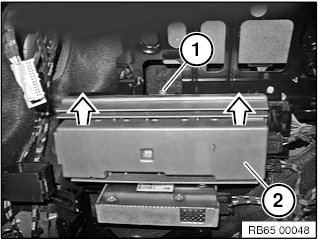

Release screw (1).
Release amplifier (2) out of mounting bracket by pulling upward.

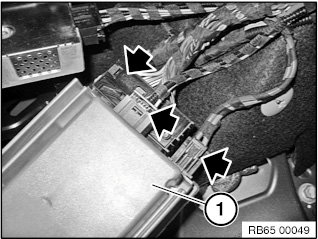

Unlock plug connections and disconnect.
Remove amplifier (1).







NOTE: Picture for example purposes.

Installation note:

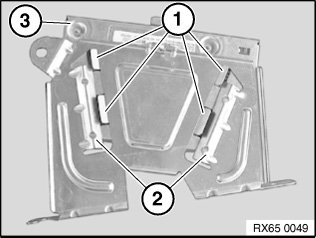

Tabs (1) must be correctly slid into guide (2).
Check that amplifier (3) is securely seated.







Replacement:
Carry out vehicle programming and encoding.
