65 12 071 Removing and Installing/Replacing Amplifier (HiFi System)

65 12 071 Removing And Installing/replacing Amplifier (HiFi)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary work:
- Disconnect negative battery cable
- Remove flap in luggage compartment panel on left

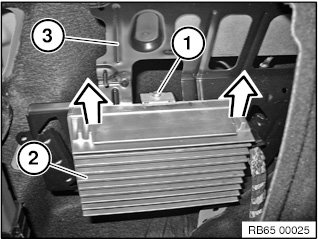

Release screw (1).
Detach amplifier (2) in direction of arrow from holder (3).

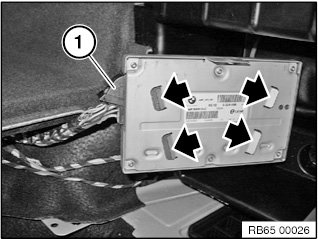

Unfasten plug connection (1) and disconnect.
Tabs at marked points must engage correctly in bracket.







Replacement:
Carry out vehicle programming and encoding.
