Rear Vision Camera: Service and Repair

66 53 180 Removing And Installing (replacing) Control Unit For Reversing Camera







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







- Remove flap in luggage compartment panel on left

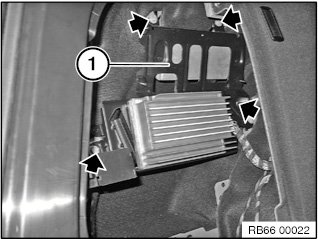

Release screws.
Remove control unit bracket (1).

NOTE: Control unit for rear-view camera is located at the back of the bracket.







Unlock plug connections and disconnect.

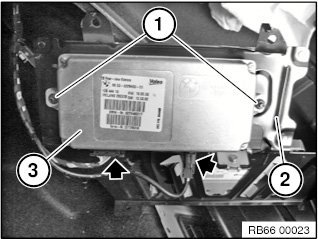

Unscrew nuts (1).
Remove control unit for rear-view camera (3) from bracket (2).







Replacement:
- Carry out vehicle programming and encoding.
- Calibrate reversing camera
