Tow Sensor: Service and Repair

65 75 055 Removing And Installing/replacing Emergency Power Siren With Tilt Sensor







Necessary preliminary work:

NOTE:
The following work steps occur with mounted front wheel.
- Partially remove front left wheel arch cover in work area

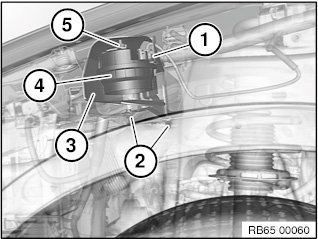

Unscrew nuts (1).
Remove emergency power siren (4) with bracket (3).
Unlock associated plug connection (1) and disconnect.
Remove emergency power siren (4) with bracket (3).

Replacement:
Release nut (5).
Remove emergency power siren (4) from holder (3).







Replacement:
Carry out vehicle programming/encoding.
