Removal and Replacement

17 22 010 Removing and installing/replacing transmission oil cooler for automatic transmission (N52T)





Important!
Risk of scalding!
Only perform this repair work after engine has cooled down.





Necessary preliminary work:
^ Drain coolant.





Recycling
Catch and dispose of drained coolant in a suitable collecting vessel.
Transmission oil emerges when fluid lines are detached from transmission oil cooler.
Catch and dispose of escaping transmission oil in a suitable collecting vessel.
Observe country-specific waste disposal regulations.

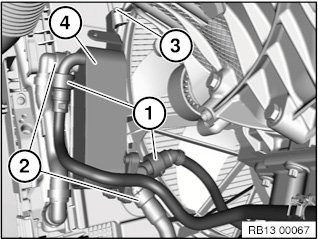

Release and disconnect coolant hoses (1).

Unlock transmission oil lines (2) and detach.

Release screw (3).

Tightening torque 17 10 6AZ.

Detach transmission oil cooler (4) from fan cowl and remove.





Note:
Assemble engine.

Check oil level in automatic transmission. If necessary, top up automatic transmission oil.
