Starter Motor: Service and Repair

12 41 020 Removing And Installing/Replacing Starter Motor (N52T)







IMPORTANT:
Aluminium-magnesium materials.
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminium screws/bolts exclusively.
Aluminium screws/bolts must be replaced each time they are released.
Aluminium screws/bolts are permitted with and without colour coding (blue).

For reliable identification:
Aluminium screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage).







Necessary preliminary tasks:
- Switch off ignition.
- Disconnect battery earth lead.
- Remove intake plenum.

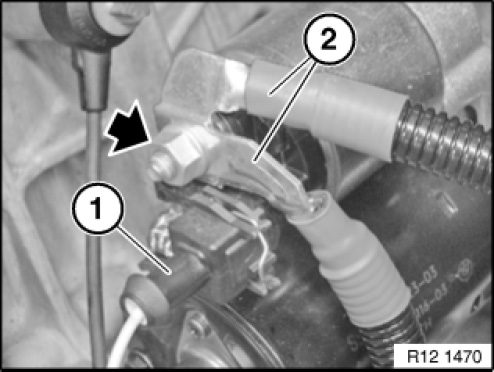

Unlock connector (1) and remove.
Unfasten nut.

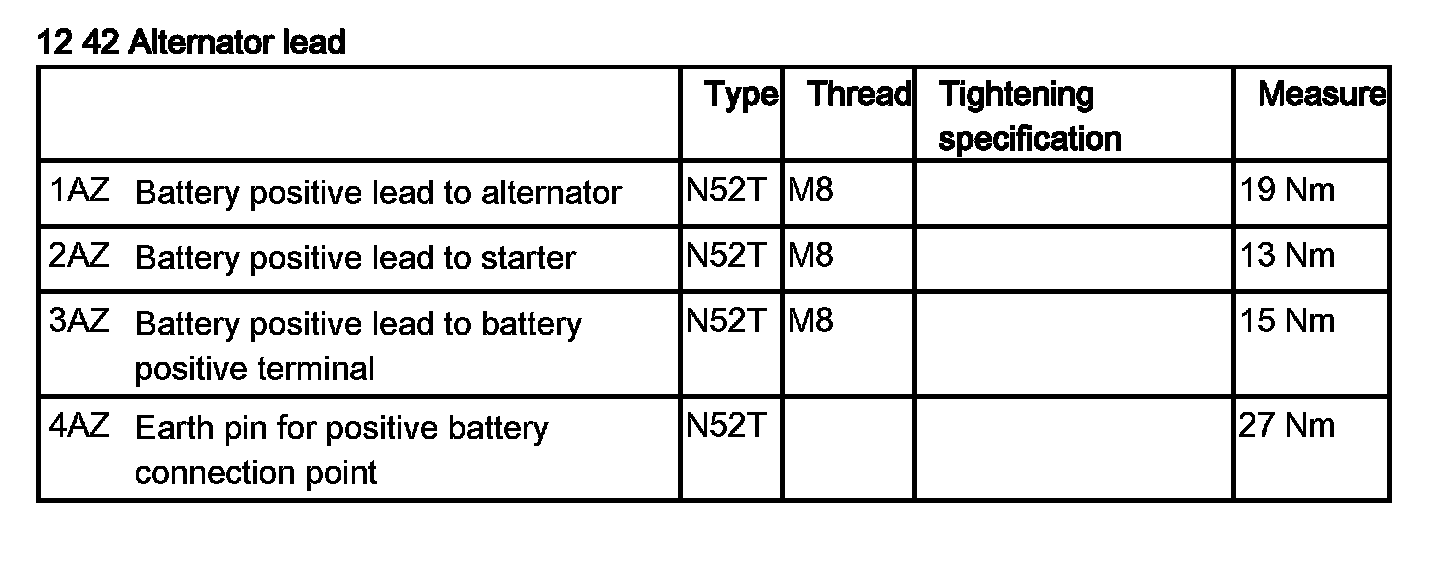

Tightening torque 12 42 2AZ.
Remove positive battery cable (2).

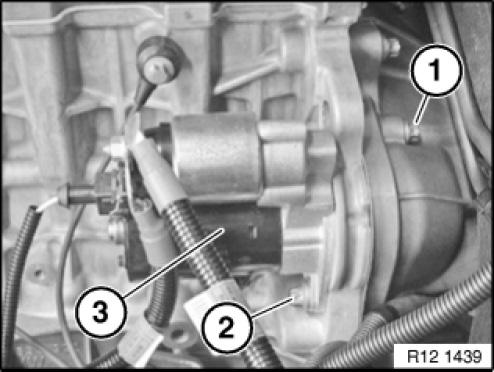

Release screw (1).

Installation note:
Replace aluminium screws.

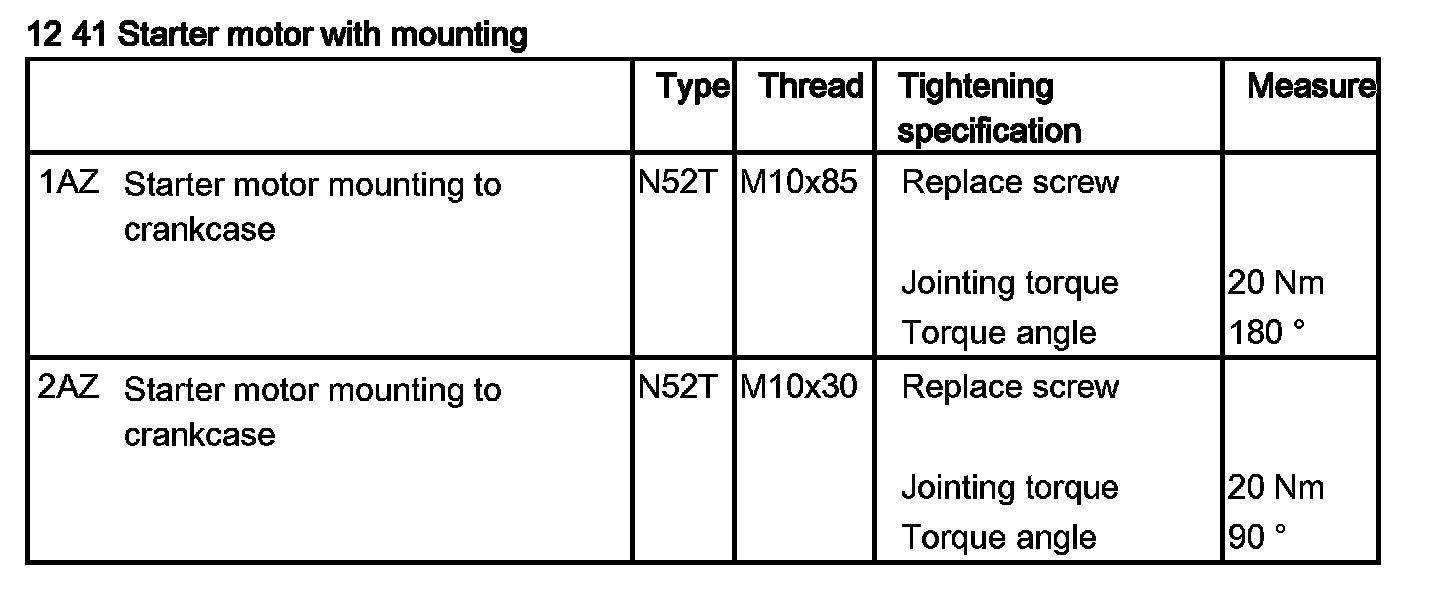

Tightening torque 12 41 1AZ.

Unfasten screws (2).

Installation note:
Replace aluminium screws.
Tightening torque 12 41 2AZ.

Remove starter motor (3).







Installation note:
Check starter pinion and ring gear for damage. Replace starter motor if necessary. Assemble engine.
