Throttle Body: Service and Repair

13 54 030 Removing And Installing/Sealing Throttle Body (N52T)







Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary work:
- Switch off ignition.
- Remove intake silencer housing.
- Remove air intake hose from throttle body.

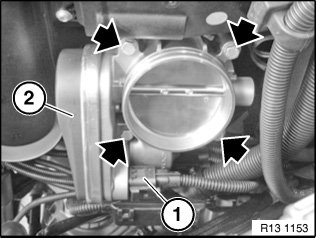

Release connector (1) and remove.
Release screws.
Tightening torque 13 54 1AZ.
Remove throttle body (2).







Installation note:

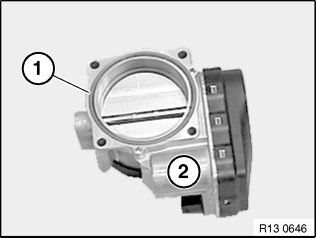

Replace sealing ring (1) of throttle body (2).







Installation note:
Check stored fault messages.
Delete fault memory.
