Fuel Injector: Service and Repair

13 64 501 Removing And Installing/Replacing A Fuel Injector (N52T)







Necessary preliminary work:
- Remove fuel injection pipe







Recycling
Fuel escapes when fuel line is detached. Catch and dispose of escaping fuel.
Observe country-specific waste disposal regulations.

NOTE: This procedure is applicable to all fuel injectors.

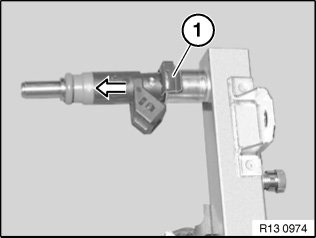

Lever out fuses (1).
Pull fuel injectors out of fuel rail.

Installation note:
Replace sealing rings on fuel injectors and coat with rubber care product.







NOTE:
Check stored fault message.
Delete fault memory.
Check injection system for leak tightness.
