Engine Accessory Drive Seal: Service and Repair

11 14 010 Replacing sealing cover for vacuum pump (N52T)

Special tools required:





Necessary preliminary work:
^ Remove fan cowl
^ Remove alternator drive belt
^ Remove both drive belt tensioners





Note:
For purposes of clarity, graphics show alternator and power steering pump removed.

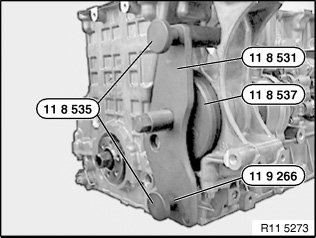

Secure special tools 11 8 535, 11 8 531, 11 8 537 and special tool 11 9 266.





Position special tool 11 8 537 by hand on sealing cap.

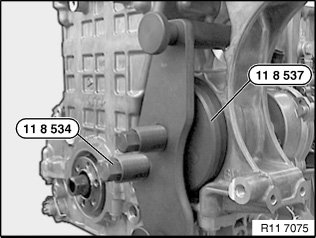

Screw in special tool 11 8 534.

Note:
The sealing cap is pressed out diagonally during this operation

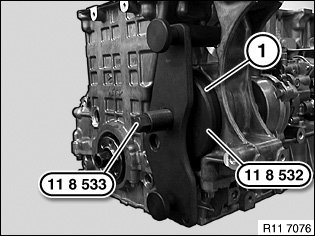

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.





Assemble engine.
