51 12 828 Removing and Installing/Replacing Guide For Bumper, Rear Left or Right

51 12 828 Removing And Installing/Replacing Guide For Bumper, Rear Left Or Right







Necessary preliminary work:
- Remove rear bumper

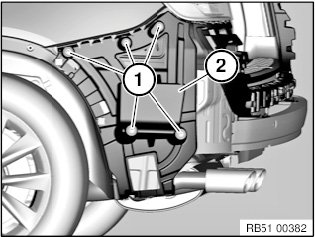

Unscrew nuts (1).
Tightening torque 51 12 3AZ.
Remove guide (2).

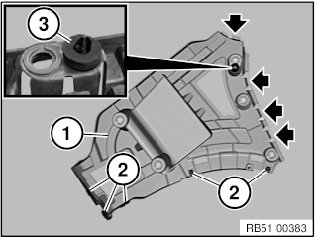

Installation note:
Latch mechanisms of guide (1) must not be damaged or missing.
Replace faulty sheet metal nuts (2).







Water ingress.
Replace sealing ring (3).
