51 12 825 Removing and Installing/Replacing Guide for Rear Centre Bumper

51 12 825 Removing And Installing/Replacing Guide For Rear Centre Bumper







Necessary preliminary work:
- Remove rear bumper trim

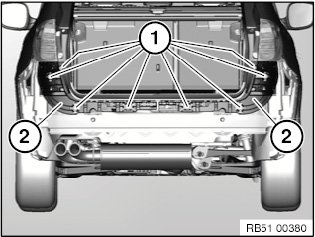

Unscrew nuts (1).
Tightening torque 51 12 2AZ.
If necessary, feed out cable for Park Distance Control.
Remove guides (2).







Installation note:

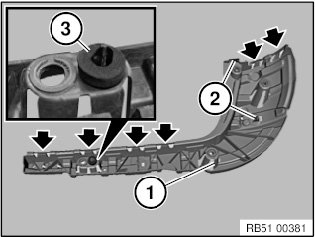

Latch mechanisms of guide (1) must not be missing or damaged.
Replace faulty sheet metal nuts (2).







Water ingress.
Replace sealing ring (3).
