Home >> BMW >> 2011 >> X3 xDrive 28i (F25) L6-3.0L (N52T) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> 65 13 160 Removing and Installing/Replacing Rear Left or Right Speaker Carrier (D-Pillar)

65 13 160 Removing and Installing/Replacing Rear Left or Right Speaker Carrier (D-Pillar)



65 13 160 Removing And Installing/replacing Rear Left Or Right Speaker Carrier (D-pillar)







Necessary preliminary work:
- Remove trim panel for roof pillar at rear.







Release screws.

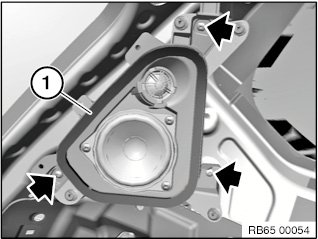

Remove speaker carrier (1) and disconnect associated plug connection.
