65 20 190 Removing and Installing/Replacing Left TV Amplifier

65 20 190 Removing And Installing/replacing Left TV Amplifier







Necessary preliminary work:
- Remove trim panel for roof pillar at rear(C pillar)







NOTE:
Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.

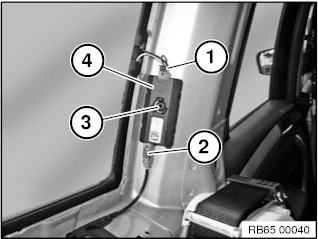

Disconnect plug connections (1) and (2).
Release screw (3).
Remove TV amplifier (4).

Installation note:
TV amplifier is coded against incorrect assembly.
