Antenna Amplifier: Service and Repair

65 20 090 Removing And Installing/renewing Aerial Amplifier (aerial Diversity)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove trim for rear window frame at top

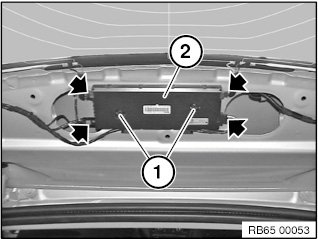

Release screws (1).
Release plug connections at the marked points and disconnect.
Remove aerial amplifier (2).
