Removing and Installing/Replacing High-Pressure Nozzle of Headlight Washer System on Left or Right (M3)

61 67 083 - Removing and installing/replacing high-pressure nozzle of headlight washer system on left or right (M3)





Special tools required:
- 13 3 010 13 3 010 Hose Clip






Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim.





To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 13 3 010 Hose Clip.
Catch any escaping washer fluid if necessary.

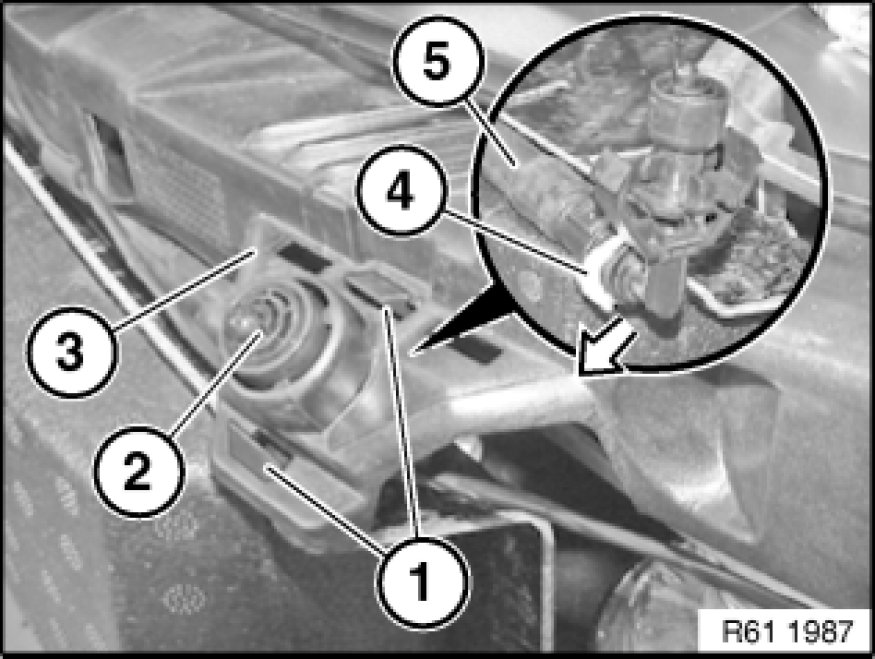

Unlock catches (1) and remove high-pressure nozzle (2) towards rear from headlight arm (3).
Raise retaining clip (4) in direction of arrow and detach high-pressure line (5) from high-pressure nozzle (2).

Installation:
Keep plug connection for high-pressure nozzle (2) and high-pressure line (5) clean and free from grease.
Make high-pressure line (5) and high-pressure nozzle (2) are correctly seated and engaged on high-pressure nozzle (2) and headlight arm (3) respectively.
Carry out a function test before fitting bumper trim.
If necessary, top up washer fluid.
