Transmission Cooler: Service and Repair

17 21 010 - Removing and installing/replacing transmission oil cooler





Important!
It is essential to adhere to the exact filling capacities specified.
Fill transmission at room temperature only (approx. 20 °-30 °C).
Gear oil:
refer to BMW Service Operating Fluids.
Failure to comply with this instruction will result in serious damage to the transmission.





Recycling:
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste-disposal regulations.





Necessary preliminary tasks:
- Remove right wheel arch cover 51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section)
- Drain transmission oil 00 11 229 Oil Change In Manual Gearbox

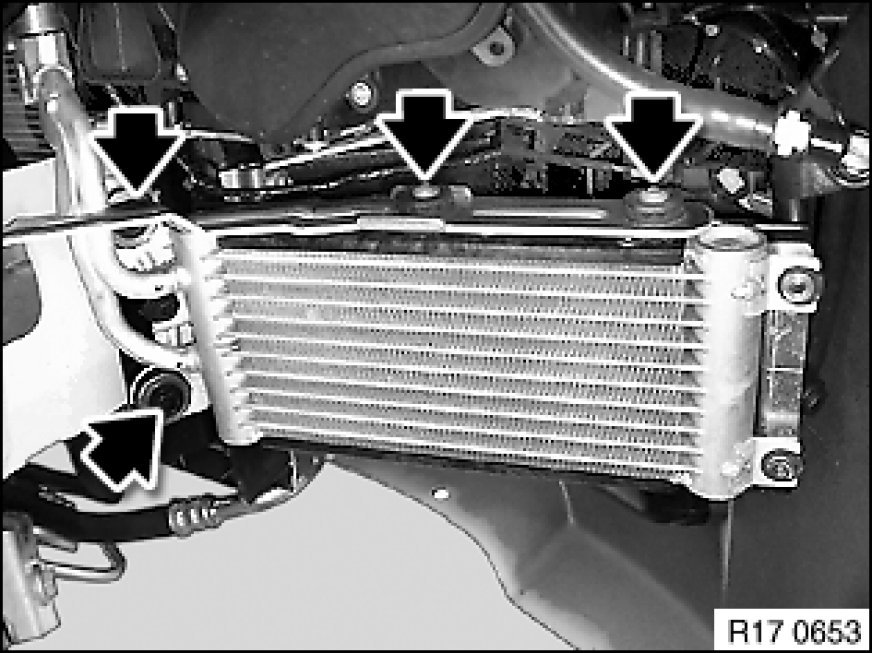

Release connections for transmission oil cooler.





Release brackets for transmission oil cooler.
Add final details to vehicle.
Check system for leaks.
