26 11 051 Replacing Flexible Disk For Front Propeller Shaft

26 11 051 Replacing flexible disc for front propeller shaft





Necessary preliminary tasks:
^ Remove propeller shaft from transmission and center bearing

Note:
To protect universal joints, tie back propeller shaft in area of center mount.

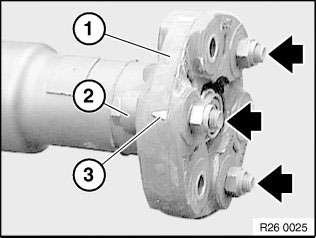

Release screws and remove flexible disc (1) from propeller shaft.

Important!
Replace shiny ZNS bolts and self-locking nuts.

Tightening torque and angle of rotation: 26 11 1AZ.

Installation:
- Arrows (3) on circumference of flexible disc must point to flange arms (2).
- Grip mounting bolts of flexible disc at propeller shaft flange at nuts and tighten down at bolt heads.





Installation:

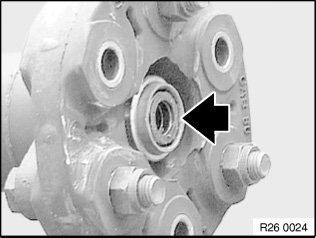

Check centering mount.

Replace damaged centering mount.

Grease centering mount.
