61 31 342 Removing and Installing/Replacing Gear Selector Switch

61 31 342 - Removing and installing/replacing gear selector switch (twin clutch transmission)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove parking lock cable from transmission
- Remove trim for storage compartment 51 16 212 Removing and Installing Trim for Storage Compartment

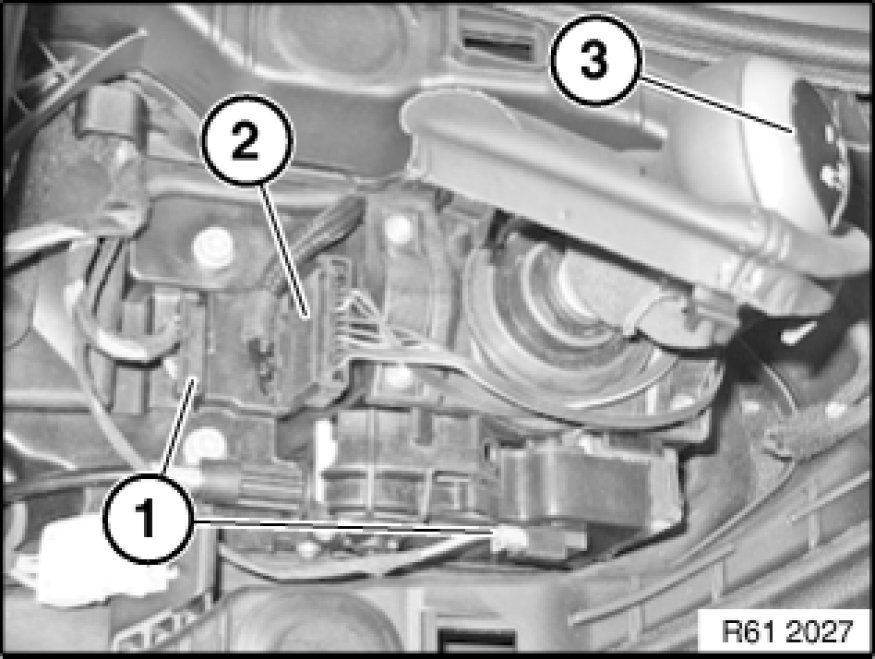

Disconnect plug connection (1).
Replacement:
Disconnect plug connection (2).
Remove shift lever knob for twin clutch transmission (3) 25 12 060 Replacing Shift Lever Knob For Twin Clutch Transmission.

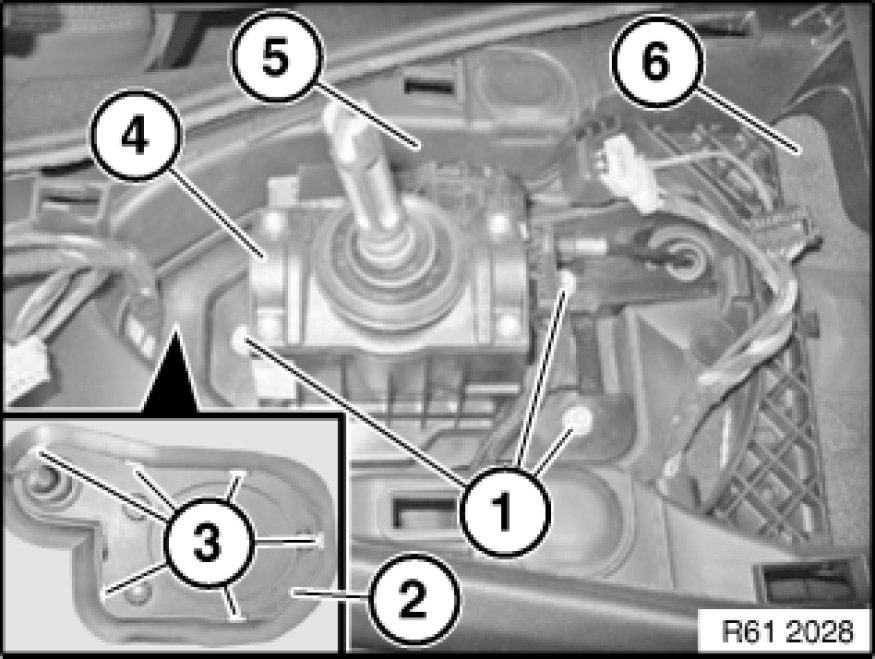

Release screws (1). Tightening torque 61 31 6AZ. Specifications
Feed gear complete gear selector switch (4) with cable and rubber seal (2) upwards out of centre console (5).

Installation Note:
Make sure rubber seal (2) is correctly fitted. Retaining lugs (3) of gear selector switch (4) must be positioned in associated openings in rubber seal (2). Feed in rubber seal (2) between centre console (5) and carpet (6).





Replacement:
Carry out vehicle programming/coding Programming and Relearning.
