Setpoint Values For the Gearshift Rods (SST)

Setpoint Values For The Gearshift Rods (SST)

Values for the gearshift rods (SST).

Nominal values

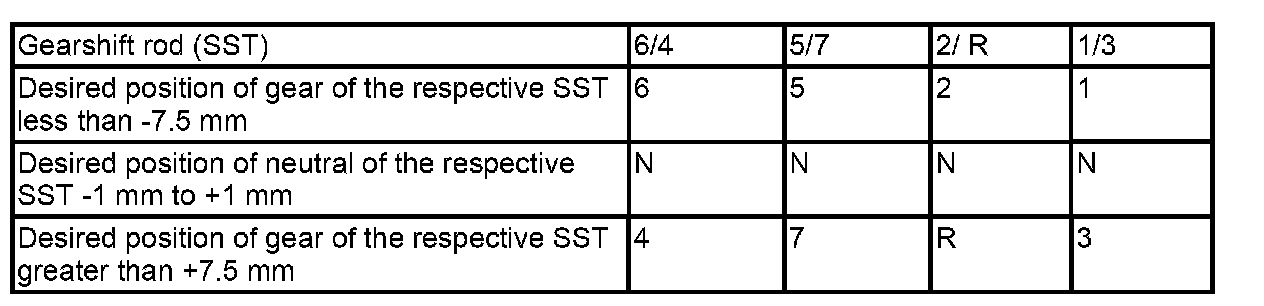

Explanations for the following table: N is inserted if the position of the respective gearshift rod is between -1 mm and +1 mm. The gears 3, R, 4, 7 are inserted if the position of the respective gearshift rod is 7.5 mm or greater. The gears 1, 2, 6, 5 are inserted if the position of the respective gearshift rod is -7.5 mm or less.

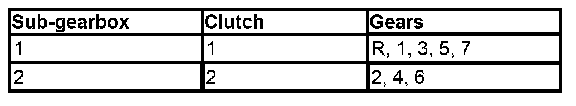

Gear distribution on the sub-gearbox in the DKG
